Monday, December 31, 2012

Stinky Washer

While repairing the brake on my Maytag Performa washer I noticed a distinctive "sour" odor emanating from the washer. In the past my wife had mentioned that the washer smelled sour or musty and to alleviate the odor she would keep the top on the washer open when we were not using it, in an effort to "air it out." But it always seemed to me that a washer shouldn't need to be "aired out." I never remember my mother or grandmother "airing out" their washers; the lids were always closed. In fact, my grandmother's washer was in her kitchen and she used the top of the washer as additional counter space!

While I had the tub removed from the washer to make the brake repair I noticed a lot of dark material around the top of the tub, located between the basket (the perforated basket in which you place your clothes) and the external tub (the part of the washer that contains the water). Further investigation determined that this dark material consisted of dried on lint and dirt from the clothes. Evidently, as we wash our clothes a form of "bath tub ring" forms around the top of this tub. Over the years the material accumulates and forms a thin layer of "gunk" washed from our clothes; primarily lint, dirt, and soap. I suspect it is the soap that acts like a glue to hold all of this in place.

I just imagined how this layer of material would hold water and over time begin to harbor that musty smell which my wife complained about. Since the tub was out of the machine, it seemed like a rather convenient time to clean this gunk form the tub.

Before we go any further, let me take this time to add my disclaimers:

Disclaimer #1: The information posted is for informational use only. Use it at your own risk as the statements on this page may be completely wrong, or your washer may not be like mine, or your mechanical skills may be rusty, or...well, there are myriad reasons why you shouldn't attempt this repair or the information may not be valid. Caveat emptor!

Disclaimer #2: Unplug your washer before working on it. You don't want any electricity to be present when you open the cover on the washer and begin poking around on the inside.

The ideal thing to do would be to wash off the gunk with a high pressure water stream from a garden hose or perhaps a car wash. However, I had already installed the brake on the tub and didn't want to that wet. Also, it was rather cold outside--too cold to run a water hose comfortably--so I decided to scrape the material from the tub while remaining inside the comfort of the washroom.

The first thing I had to do was remove the rim from the top of the tub. This rim just clips on, so using a putty knife and screw driver to pry it off worked well. I placed the putty knife against the tub and then placed the screwdriver between the blade of the putty knife and each clip of the ring. The putty knife prevented the screw driver from puncturing the side of the tub. Sorry I didn't take any photographs of this process :-(

I used a putty knife and a pocket knife, but you might find something more effective. My two main concerns were (1) puncturing the tub, which would produce a leak during the next use of the washer, and (2) making the smooth plastic tub rough, which would just speed the accumulation of gunk to the tub in the future. So, very carefully, I scraped the material I could get to with my knives, pulling it from the tub placing it on a paper towel (i.e., wiping it from my knife) so it wouldn't drop down into the bottom where it might cause further havoc.

After I scraped all I could, I took a spray bottle of 1 part vinegar and 1 part water and sprayed the remaining gunk and then wiped it out the best I could. This vinegar/water solution seems to be a good all-around cleaner when I don't want to use soap. Vinegar is a good mild cleaner and works on most surfaces: windows, doors, cabinets, etc. Also, I figured that the chemistry of the vinegar would offset the chemical composition of the soap: vinegar is a mild acid and soap is a mild base (remember your pH scale from high school chemistry?). Hopefully the vinegar would break down the surfactants in the soap and clean the plastic surface of the tub.

One thing to remember about soap is this: it is designed to attract dirt. This is a physical/chemical process that works very well. Unfortunately, once an item is cleaned, it is rather difficult to remove all of the soap from the surface. Many times, a bit of the soap remains, especially if water was not used to rinse the surface. So, any remaining soap tends to attract dirt quicker than would normally occur with a "clean" soap-free surface, therefore it becomes dirty quicker than previously.

This phenomenon occurs when you have your carpets cleaned or you use any of the household spray-and-wipe cleaners, etc. That soap residue that is left behind attracts dirt. However, when using the vinegar, no soap is used so no soap residual remains to attract dirt.

Once the majority of the gunk was removed I gave the tub a good spraying of vinegar/water and re-installed it back in the washer. I suspect that spraying the inside of the tub with the vinegar solution after using the washing machine will help prevent the build up of the gunk too. Another option is to add some vinegar to the washer and let it run through a wash cycle, but getting a 1:1 mixture of vinegar and water in your tub will require several gallons of vinegar, which is probably not cost effective and could damage the washer pump or other components.

Happy fixing!


Wednesday, December 26, 2012

Maytag Performa Brake Repair

UPDATE:It's been a year since I first posted this repair (see old post below). The repair lasted about a month then the washer brake started screeching again. Then this week I searched for some alternative repairs--looking for someone to confirm my suspicion that adding a bit of lubricant to the brake might alleviate the squeal. Eureka! I found a post, added oil to my brake, and the squeak is (nearly) gone! hooray! More will be added later, but the short solution is this: about 6-8 drops of 5w-30 placed on the brake did the trick. For more information see this link and scroll down about 3/4's of the page to Figure M-12 I removed my tub to do this procedure, but that may not be necessary.

It was Christmas and I needed a project. Our Maytag washer had been making a high pitched screech at the end of the spin cycle that would make the hair on the back of my neck stand on end. It was the kind of sound that reminded me of someone dragging their fingernails across the chalkboard--but for just a second or two. Needless to say, everyone in our house was ready for the screeching to end! My solution was to clean the brake and--eureka!--the noise ended and I am back to being the hero of my castle.

Here's the story: As we all know, Google is the purveyor of all information, so engaged in a google search that led me to believe the problem was in the washer brake mechanism. Further googling yielded a discussion board posting that suggested adding a drop or two of oil to the brake to eliminate the squeal, with followup posts suggesting oiling the brake was a bad idea. Adding oil to the brake seemed like a poor solution to me too (I envisioned a sheen of oil on my car brakes and an inability to stop as I approached a stopped car in front of me). I felt their had to be a better way to address the noise.

More googling led me to Angel Acevedo (aka TheApplianceMan). This man has made some GREAT videos illustrating how to properly repair appliances. His video about the Performa brake gave me the confidence that I could tackle this project (watch it here But instead of replacing the brake ($32-$50) I decided to repair the brake and now the screech is gone!

I'll share the step-by-step instructions for making this repair, but you need to watch Angel's video too for the complete story and instructions. I'll mainly focus on how I cleaned the brake. Before you begin, here are my warning and disclaimers:

Disclaimer #1: The information posted is for informational use only. Use it at your own risk as the statements on this page may be completely wrong, or your washer may not be like mine, or your mechanical skills may be rusty, or...well, there are myriad reasons why you shouldn't attempt this repair or the information may not be valid. Caveat emptor!

Disclaimer #2: Unplug your washer before working on it. You don't want any electricity to be present when you open the cover on the washer and begin poking around on the inside.

Disclaimer #3: Some of the photos are terrible. I used to be very critical of some of the out-of-focus pictures I saw on the web, but now I understand why they are so bad: Trying to get a close up shot, using only one hand, while holding the part being photographed with the other hand, is a feat!

Let's get started! The first thing is to remove the belt from the pulleys on the underside of the washer. Next you'll remove the front panel of the washer--you'll need a putty knife and a 5/16" (or 8mm) wrench or nut driver to get the front off of the machine. See Angel's video (I told you to watch it!). Slide the putty knife under the front of the top and push on each side to release the spring clips. After that, remove the two 5/16" screws holding the front panel in place.

Next you'll remove the springs holding the tub in place--I used a vice-grip to remove the springs, but you may have a better idea or you might even have the $20 spring remover that Angel uses on his video. Let me share this with you: the front springs are MUCH easier to remove than the back springs. In fact, you might want to remove the inspection plate on the rear of the machine to access the rear springs(see photo below). Also, you'll need some strength to remove these springs, or at least some leverage (physics at work!).

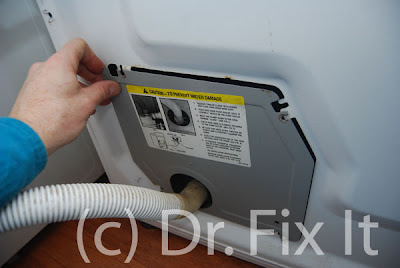

Remove the two hoses attach to the tub: the water fill sensor (small clear (or white) hose on left-hand side of tub) and the drain hose (large black host at bottom on right-hand side). The drain hose clamp might be accessed easier from the rear through the inspection panel. Have a towel or two ready when you pull off the drainage hose because all of the water still in the discharge host on the discharge side of the pump will spill on your floor--probably a half-gallon of old rinse water. My water had a sour smell, so be forewarned.

Find a helper and remove the tub from the washer lifting straight up (watch Angel's video), set the tub upside down so you can access the pulley and brake, and then remove the pulley and all the hardware (see Angel's video). I set a towel on the floor to absorb any residual water and not damage the tub edge. As you remove the C-clip and washers be certain to place all of these pieces in the exact order they are removed so that you can replace them in the correct order later. Also, be certain to place them correct side up too.

Now on to the brake--this is where things get tricky. Removing the break drum can be problematic because the there is a 200 pound spring under the drum. You can easily damage the drum if you're not careful.

To remove the drum, remove two screws opposite each other, just like Angel does. Then replace these screws with two 1.5" 10-24 screws. The 24 threads-per-inch worked on my washer, so I suspect yours is the same. Angel used self-tapping sheet metal screws, but a machine screw will keep your threads intact.
Once you have replaced the two screws with the longer replacement screws and tightened them down, then remove the four other screws. After that you can slowly unscrew the two long screws, backing each one out a little at a time (see Angel's video) until the pressure is off the 200 lb spring (that's right--200 pounds!). If you just start removing all the screws one at a time you'll ruin the brake drum and have to purchase a new one.

The brake has two parts: the drum and the shoe. The drum is on top and is what you see in the picture below. The shoe is underneath with a strip of brake lining attached to it. My lining had a 3/8" space between its beginning and its end, which appeared to be normal (see photo).

Remove both parts from the washer. I noticed that my parts were covered with a fine powder--a dust--presumably from the brake lining. At this point I placed the drum over the shoe, like they would be on the washer, and attempted to recreate the noise by twisting these two against one another--which I did, not quite as loud, the vibration did start to occur which produced a lower pitch, similar to the sound you get when rubbing your finger around the edge of a wine glass. Problem identified!

Take both pieces to your workbench and wipe down with alcohol to remove the dust. I don't know what this material is made from, but it's probably not a good idea to just blow it off the drum. This is probably all that is needed to stop the screeching because at this point I tried to recreate the noise again and no noise--hallelujah!

Not wanting to venture into the washer again and fight those tub springs, I decided to take an extra step and "resurface" the brake and shoe. As you can see from the photo a very shiny worn surface was evident where the brake shoe had rubbed against the drum for the past 10 years. To resurface this area I took a small piece of 215 grit sand paper (any fine sand paper should work) and made one or two passes across both the drum and the pad. I then wiped both parts down with alcohol again.

This is how the drum looked after "resurfacing" it.
One last thing I did was vacuum the plastic dust and threads that had worn from the plastic ring at the base of the tub ("snubber ring"?). I also vacuumed the plastic shavings and dust from the bottom of the washer.

Assembly is opposite of disassembly. One caution: When reattaching the brake assembly on top of the 200 lb spring, begin with the 10-24 1.5" screws. Carefully get the threads started into holes opposite each other. Then slowly screw down each screw a little bit at a time--one side and then the other--until the two 1.5" screws are tightened down all the way. Then replace the other four screws. After that, remove the 1.5" screws and replace them with the original short screws. (Once again, watch Angel's video).

The rest is relatively easy: replace the washers and other hardware in the same order that it was removed.

Here's where I took a detour: We cleaned the gunk from around the top of the tub. See my other blog post for more information about that procedure.

Back to the reassembly. Two people are needed to set the tub back inside the washer. Be careful to set the tub down very slowly and seated on the bottom of the washer properly. The tub label should face towards the front of the washer.

The most difficult part of this procedure was re-attaching the springs to the bottom of the tub. For each spring, place the bottom hook in first, and then stretch the spring to attach the top hook to the bottom of the tub. Place the rear springs on first--they are the most difficult to get to and it's easier to re-insert these springs when the tub has some ability to wiggle back and forth. Also, accessing the spring mounts from the back of the washer may be easier.

In my case I was able to replace all of the springs through the front of the washer, beginning with the rear springs first, and working towards the front. I used locking pliers (aka Vise-Grips) while laying on the ground in front of the washer with my arms inside the washer, all the while developing a new vocabulary as the springs slipped from my pliers. Only twice did the pliers slip with such force to cause my fingers to hit the base of the tub, yielding a loud "ouch!" and bruising my pride more than my fingers.

Re-attach the hoses (there are two: a slender fill sensor hose and the large pump drain hose). Be certain to double check the clamps for these two hoses or you will be mopping up a mess later.

After that, replace the front of the washer and plug in the cord. Test you handiwork by running it through the delicate cycle on extra large load. Then listen for the end of the spin cycle--hopefully you'll be pleasantly surprised at the noticeable silent stop of the tub.

Good Luck!

~Dr. Fix It Follow-up: a few weeks after I made this repair the squeak returned, but not nearly as loud. So, a drop or two of oil silenced it once again. (And I do mean just a drop or two--be very conservative with the lubricant).
